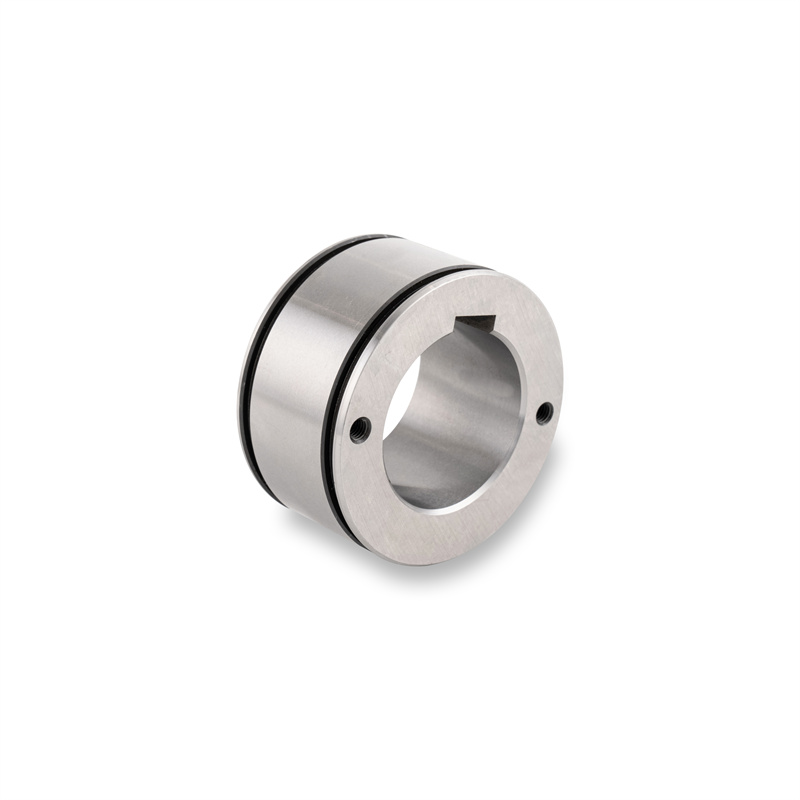

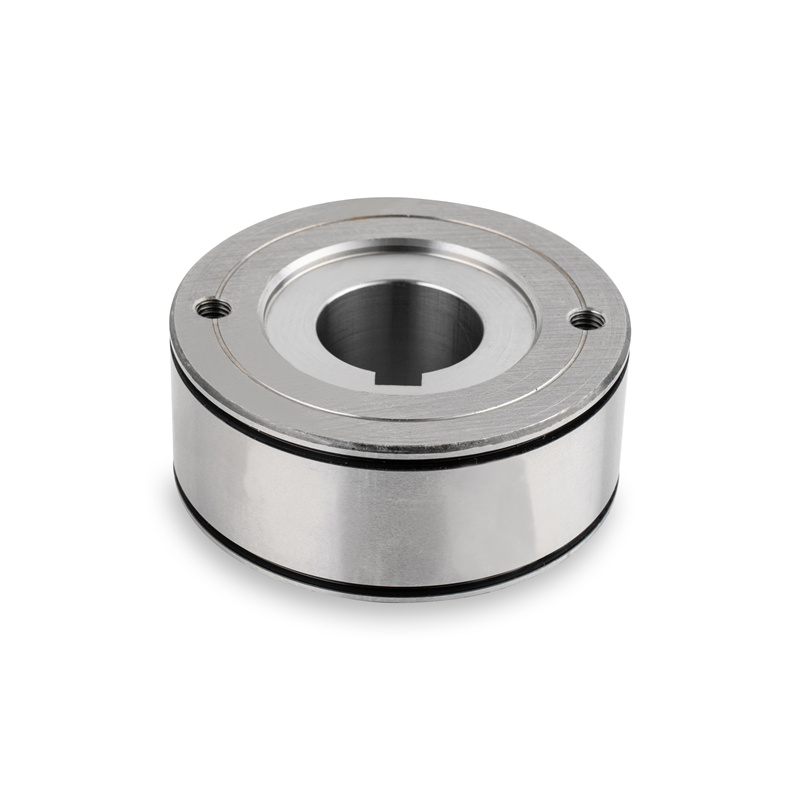

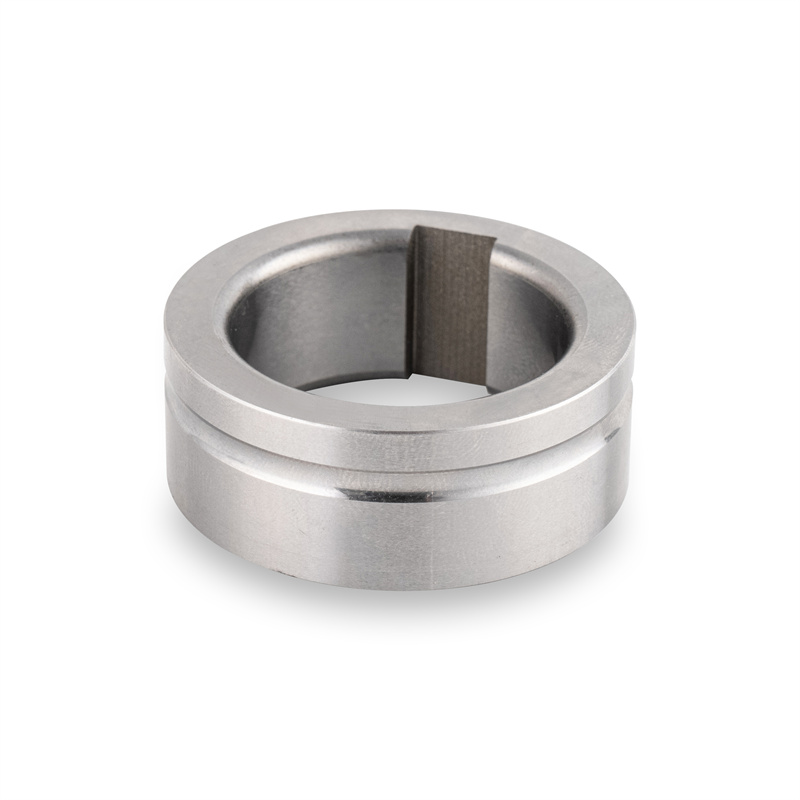

Keyway ferens Annuli

Interiorem Ringonem Designatio

mm
Dimensiones terminus

kg

Pondus

D

F

B

LR13

13

17.2

24

0.01837

IR14

14

17

17

0.009665

IR15

15

18~20

16~23

0.0093~0.0247

IR16

16

20~26

9~15.5

0.00774~0.039504

IR17

17

20~24

16~20

0.011~0.034

LR17

17

20

30.5

0.021

LR18

18

26

15.5

0.033024

IR19

19

22

14

0.010416

IR20

20

24~28

16~20

0.017~0.0452

LR20

20

25

20.5

0.0279

IR22

22

26~28

12~30

0.01373~0.054

IR25

25

30~32

18~22

0.0078~0.052

LR25

25

30

26.5

0.043

IR28

28

32

17~30

0.0234~0,0438

IR30

30

35~38

16~20

0.031~0.065

LR30

30

35

20.5

0.0407

IR60

60

68~70

25~60

0.195~0.463

IR62

62

70~75

30~39

0.2523

IR65

65

72~75

25~45

0.142~0.2362

IR70

70

80

25~54

0.224~0.48

IR75

75

84~85

44~54

0.38572~0.52

IR80

80

80~90

25~54

0.25712~0.55

IR85

85

95~100

26~63

0.28~1.05

IR90

90

105

63

1.11

IR110

110

120~ 125

30~40

0.409~0.86276
