Duplex Row Angularis Contactus Ball Ferens magnas radiales sarcinas ferre potest, maxime radiales et axiales complicatas onera et onera torques, limitando axialem obsessionem utriusque scapi.
Adhiberi possunt in applicationibus ubi spatium axiale limitatur, cum duo pila contactus unius ordinis angularis gestus in tergo-ad-retro dispositae sunt.

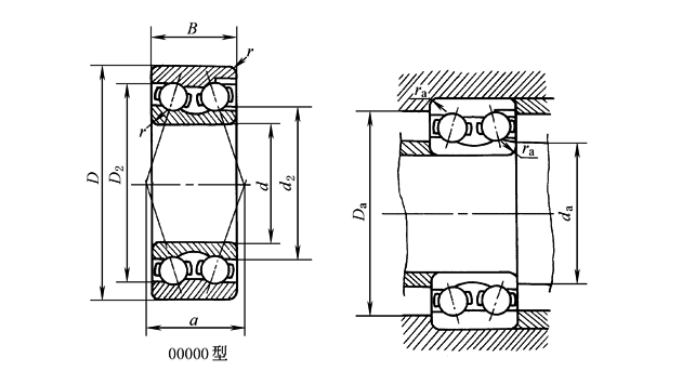

| Magnitud*o fundamentalis / mm | Basic nominalis cr*imen / kN | Finis celeritatis /r·min-1 | Missa /kg | supportantes codice | Aliae magnitudinis /mm | Installation size / mm | |||||||||
| d | D | B | Cr | C0r | pinguis | oleum | W | 3200 | d2 | D2 | a | r | da | Da | ra |
| 10 | 30 | 14.3 | 7.42 | 4.30 | 16000 | 22000 | 0.054 | 3200 | 17.7 | 23.6 | 18 | 0.6 | 15 | 25 | 0.6 |
| 12 | 32 | 15.9 | 10.2 | 5.60 | 15000 | 20000 | 0.058 | 3201 | 19.1 | 26.5 | 20 | 0.6 | 17 | 27 | 0.6 |
| 15 | 35 | 15.9 | 11.2 | 6.80 | 12000 | 17000 | 0.066 | 3202 | 22.1 | 29.5 | 22 | 0.6 | 20 | 30 | 0.6 |
| 17 | 40 | 17.5 | 14.0 | 8.65 | 10000 | 15000 | 0.1 | 3203 | 25.2 | 33.6 | 25 | 0.6 | 22 | 35 | 0.6 |
| 20 | 47 | 20.6 | 18.5 | 12.0 | 9000 | 13000 | 0.16 | 3204 | 29.6 | 39.5 | 30 | 1 | 26 | 41 | 1 |
| 52 | 22.2 | 22.2 | 14.2 | 8500 | 12000 | 0.22 | 3304 | 31.8 | 42.6 | 32 | 1.1 | 27 | 45 | 1 | |
| 25 | 52 | 20.6 | 20.2 | 14.0 | 8000 | 11000 | 0.18 | 3205 | 34.6 | 44.5 | 33 | 1 | 31 | 46 | 1 |
| 62 | 25.4 | 31.2 | 20.8 | 7500 | 10000 | 0.35 | 3305 | 38.4 | 51.4 | 38 | 1.1 | 32 | 55 | 1 | |
| 30 | 62 | 23.8 | 25.2 | 20.0 | 7000 | 9500 | 0.29 | 3206 | 41.4 | 53.2 | 38 | 1 | 36 | 56 | 1 |
| 72 | 30.2 | 36.8 | 28.5 | 6300 | 8500 | 0.53 | 3306 | 39.8 | 64.1 | 44 | 1.1 | 37 | 65 | 1 | |
| 35 | 72 | 27 | 33.5 | 27.5 | 6000 | 8000 | 0.44 | 3207 | 48.1 | 61.9 | 45 | 1.1 | 42 | 65 | 1 |
| 80 | 34.9 | 44.0 | 34.0 | 5600 | 7500 | 0. 73 | 3307 | 44.6 | 70.1 | 49 | 1.5 | 44 | 71 | 1.5 | |
| 40 | 80 | 30.2 | 40.5 | 33.5 | 5600 | 7500 | 0. 58 | 3208 | 47.8 | 72.1 | 49 | 1.1 | 47 | 73 | 1 |
| 90 | 36.5 | 53.2 | 43.0 | 5000 | 6700 | 0.95 | 3308 | 50.8 | 80.1 | 56 | 1.5 | 49 | SI | 1.5 | |
| 45 | 85 | 30.2 | 42.8 | 38.0 | 5000 | 6700 | 0.63 | 3209 | 52.8 | 77.1 | 52 | 1.1 | 52 | 78 | 1 |
| 100 | 39.7 | 64.8 | 73.5 | 4500 | 6000 | 1.40 | 3309 | 63.8 | 86.3 | 64 | 1.5 | 54 | 91 | 1.5 | |
| 50 | 90 | 30.2 | 42.8 | 39.0 | 4800 | 6300 | 0.66 | 3210 | 57.8 | 82.1 | 56 | 1.1 | 57 | 83 | 1 |
| 110 | 44.4 | 79.2 | 96.5 | 4000 | 5300 | 1.95 | 3310 | 73.3 | 97.0 | 73 | 2 | 60 | 100 | 2 | |
| 55 | 100 | 33.3 | 51.5 | 67.0 | 4300 | 5600 | 1.05 | 3211 | 70.4 | 88.3 | 64 | 1.5 | 64 | 91 | 1.5 |
| 120 | 49.2 | 85.8 | 108 | 3800 | 5000 | 2.55 | 3311 | 81.0 | 110 | 80 | 2 | 65 | 110 | 2 | |
| 60 | 110 | 36.5 | 65.0 | 85.0 | 3800 | 5000 | 1.4 | 3212 | 78.0 | 98.3 | 71 | 1.5 | 69 | 101 | 1.5 |
| 130 | 54 | 100 | 128 | 3400 | 4500 | 3.25 | 3312 | 87.2 | 115 | 86 | 2.1 | 72 | 118 | 2.1 | |
| 65 | 120 | 38.1 | 70.2 | 95.0 | 3600 | 4800 | 1.75 | 3213 | 83.7 | 105 | 76 | 1.5 | 74 | 111 | 1.5 |
| 140 | 58.7 | 115 | 150 | 3200 | 4300 | 4.1 | 3313 | 92.5 | 122 | 94 | 2.1 | 77 | 128 | 2.1 | |
| 70 | 125 | 39.7 | 68.8 | 98.0 | 3200 | 4300 | 1.90 | 3214 | 90.6 | 111 | 81 | 1.5 | 79 | 116 | 1.5 |
| 150 | 63.5 | 132 | 172 | 2800 | 3800 | 5.05 | 3314 | 99.2 | 131 | 101 | 2.1 | 82 | 138 | 2.1 | |
| 75 | 130 | 41.3 | 75.8 | 110 | 3200 | 4300 | 2.10 | 3215 | 94.7 | 116 | 84 | 1.5 | 84 | 121 | 1.5 |
| 160 | 68.3 | 142 | 185 | 2600 | 3600 | 6.15 | 3315 | 106 | 139 | 107 | 2.1 | 87 | 148 | 2.1 | |
| 80 | 140 | 44.4 | 90.8 | 135 | 2800 | 3800 | 2.65 | 3216 | 102 | 127 | 91 | 2 | 90 | 130 | 2 |
| 170 | 68.3 | 158 | 212 | 2400 | 3400 | 6.95 | 3316 | 113 | 148 | 112 | 2.1 | 92 | 158 | 2.1 | |
| 85 | 150 | 49.2 | 98 | 145 | 2600 | 3600 | 3.40 | 3217 | 107 | 133 | 97 | 2 | 95 | 140 | 2 |
| 180 | 73 | 175 | 240 | 2200 | 3200 | 8.30 | 3317 | 120 | 157 | 119 | 3 | 99 | 166 | 2.5 | |
| 90 | 160 | 52.4 | 115 | 172 | 2400 | 3400 | 4.15 | 3218 | 115 | 143 | 104 | 2 | 100 | 150 | 2 |
| 190 | 73 | 198 | 285 | 2000 | 3000 | 9.25 | 3318 | 128 | 169 | 125 | 3 | 104 | 176 | 2.5 | |
| 95 | 170 | 55.6 | 132 | 205 | 2200 | 3200 | 5.00 | 3219 | 124 | 154 | 111 | 2.1 | 107 | 158 | 2.1 |
| 200 | 77.8 | 215 | 315 | 1900 | 2800 | 11.0 | 3319 | 135 | 178 | 133 | 3 | 109 | 186 | 2.5 | |
| 100 | 180 | 60.3 | 142 | 220 | 2000 | 3000 | 6.10 | 3220 | 129 | 160 | 118 | 2.1 | 112 | 168 | 2.1 |
| 215 | 82.6 | 230 | 355 | 1800 | 2600 | 13.5 | 3320 | 142 | 187 | 139 | 3 | 114 | 201 | 2.5 | |
| 110 | 200 | 69.8 | 170 | 270 | 1900 | 2800 | 8.80 | 3222 | 143 | 178 | 132 | 2.1 | 122 | 188 | 2.1 |
| 240 | 92.1 | 262 | 425 | 1700 | 2400 | 19.0 | 3322 | 155 | 205 | 153 | 3 | 124 | 226 | 2.5 | |
